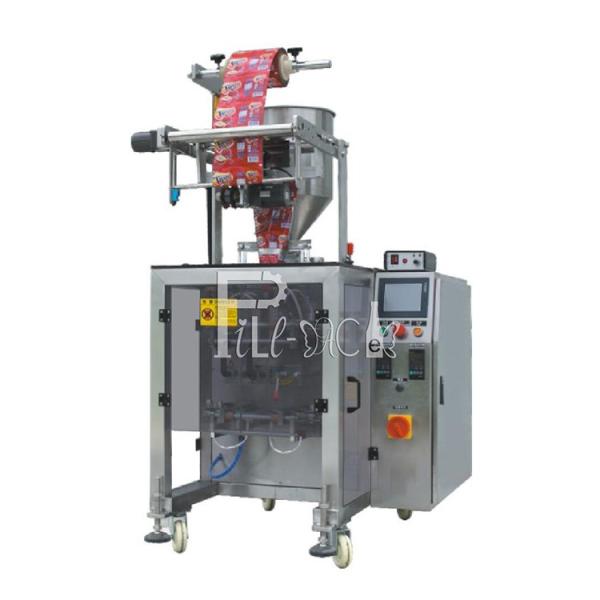

Automatic 1 Line 3 Sides Paste Sachet Pouch Filling And Sealing
Packing Machine
General:
This machine adopts frequency conversion speed regulation and pump
pressure feeding system with strong adjustable energy and high
precision. It can automatically complete the functions of bag
making, measuring, filling, sealing, slitting, easy tearing, hot
pressing batch number, and can be divided and connected.It is
suitable for the packaging of liquid materials such as food,
medicine, daily necessities, and chemicals. (eg: packaging of
shampoo, honey, ketchup, edible oil, chili sauce, etc.)
Main performance and structure features:
- Automatic packaging machines can complete the work of measuring,
bag making, filling, sealing, cutting, counting, batch number
automatically during the packaging process.
- Control system can match action combined with each other
automatically. System has a fine high accuracy. It is easy and
accurate to adjust the bag-making length. It has Stepless
adjustment about speed and bag length, packaging speed and length
of bag can be adjusted continuously within the specified limits, do
not need to replace parts;
- The design adopts a unique embedded sealing, enhanced heat sealing
institutions, PID intelligent temperature controller for
temperature control, have good thermal equilibrium for various
packaging materials, good performance, low noise and sealing lines
clear, strong sealing.
- Liquid measurement methods: measurement of liquid pump, precision
1-3%
- Contact part of equipment and the material is stainless steel 304.
- The device is three-side sealing, and the sealing model is
horizontal cutting.
- This device contains ribbons code machine for option.
Automatic features:
◆Stepless speed: packaging speed has stepless adjustment within a
certain range, can reach best match for bag-making , filling,
sealing, cutting links , makes the packaging process is stable and
reliable
◆Bag length can be set within specified limits,Motor driven cam,
stable and reliable, the speed can be selected
◆Using motor to pull film,when packaging films have colored logo
location signs, bag-making process allows for photoelectric
detection, localization, sealing, cutting, ensure the bag pattern
integrity.
◆With self-diagnostics, fault tips feature.
◆PID of high precision control for temperature control, has
excellent thermal stability, ensure the quality of the sealing of
different materials
◆Easy operation and maintenance: intermittent simple structure,
easy operation and maintenance
◆Versatile: by replacing the different filling heads could achieved
a multi-purpose machine
◆Automatically print product lot number, can be added easily torn,
easy to use
◆Full set adopts high quality device with stable quality, low
noise, low failure rate, long service life
◆This machine is compact and unique, stylish, all devices of
contact with materials are made from stainless steel and non-toxic
corrosion-resistant plastics, comply with the requirements of the
food and pharmaceutical packaging (GMP). Particularly suitable for
the food, pharmaceutical and chemical industries.
Technology Specification:
| Capacity | 40-80bags/min |
| Film width | 280mm |
| Filling material | Paste |
| Bag Size | 140MM(W)*130MM(L) |
| Sealing type | 3 side sealing |
| Power | 1.51KW |
| Voltage | 220V |
| Packing material | Paper/the polyethylene,polyester/aluminum
ofil/polyethylene,nylon/polyethylene,tea filter paper,etc |
| Net weight | 300KG |
| Overall Dimension | L1260*W960*H1700MM |
| Material | 304 stainless steel |
